Revolutionizing PCB Testing and flashing for automotive electronics

Transform your PCB testing and programming processes with the groundbreaking integration of JOT Automation’s M Test Box and ProMik’s Multi Standard Programmer (MSP) Family. This dynamic duo delivers a highly adaptable and efficient solution, perfectly suited for both inline and offline applications.

The M Test Box offers a customizable, application-specific test platform with fully embedded instrumentation, making it ideal for prototype testing, new product introductions, and small-scale production. Its plug-and-play design ensures effortless scalability from offline to inline test handling, offering a minimal footprint and unmatched flexibility for diverse production environments. In short, the M Test Box is a flexible and scalable test automation solution with customizable applications and instrumentation. As the platform is customizable on the application level, it offers unprecedented flexibility and reusability throughout the product’s lifetime.

Complementing the M Test Box, ProMik’s MSP 21X0Net delivers high-speed, secure, and scalable in-system programming (ISP) for modern electronics production. Optimized for complex applications with the latest semiconductor technologies, it enables parallel programming, flashing multiple devices simultaneously to reduce cycle times and increase efficiency. Supporting all standard serial interfaces (JTAG, BDM, SWD, SPI) and automotive fieldbus interfaces (Ethernet, CAN FD, LIN), it ensures seamless integration. Thanks to patented cable technology, the programmer can be mounted outside the fixture, optimizing space and flexibility. Further, the MSP Family evolves into a high-performance tool for Boundary Scan and Functional Test, integrating SMART ICT—combining Boundary Scan, Flash, and FCT in one step for higher test coverage and maximum cost savings. With support for cybersecurity implementation, a built-in application power supply, and real-time current & voltage monitoring, the MSP Family delivers unmatched performance and flexibility, from development to high-volume production.

High-speed test & flashing station for pcbs

The beauty of the M Test Box is that you can run it virtually anywhere in your production: testing on panel level prior to depaneling, module level testing when products are typically on a pallet, or at final product testing phase.

minimal footprint, maximal flexibility

Perfect solution for tabletop, prototype and new product testing.

High-speed, parallel programming

High-speed, secure, and scalable flash programming.

Scalability for all production environments

Unparalleled scalability, from off-line use to in-line test handling in an instant.

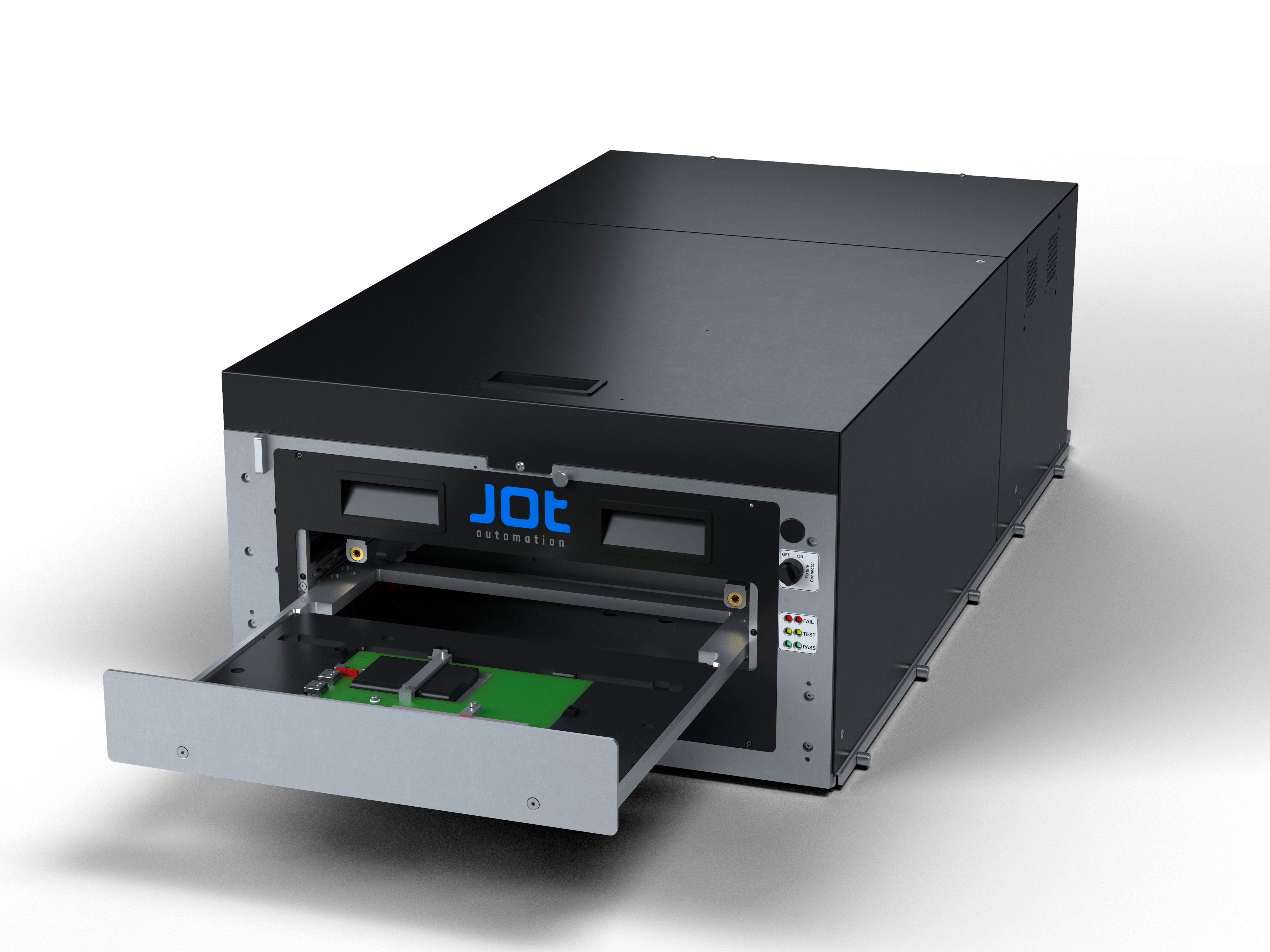

PRE_M10-1315_open_2

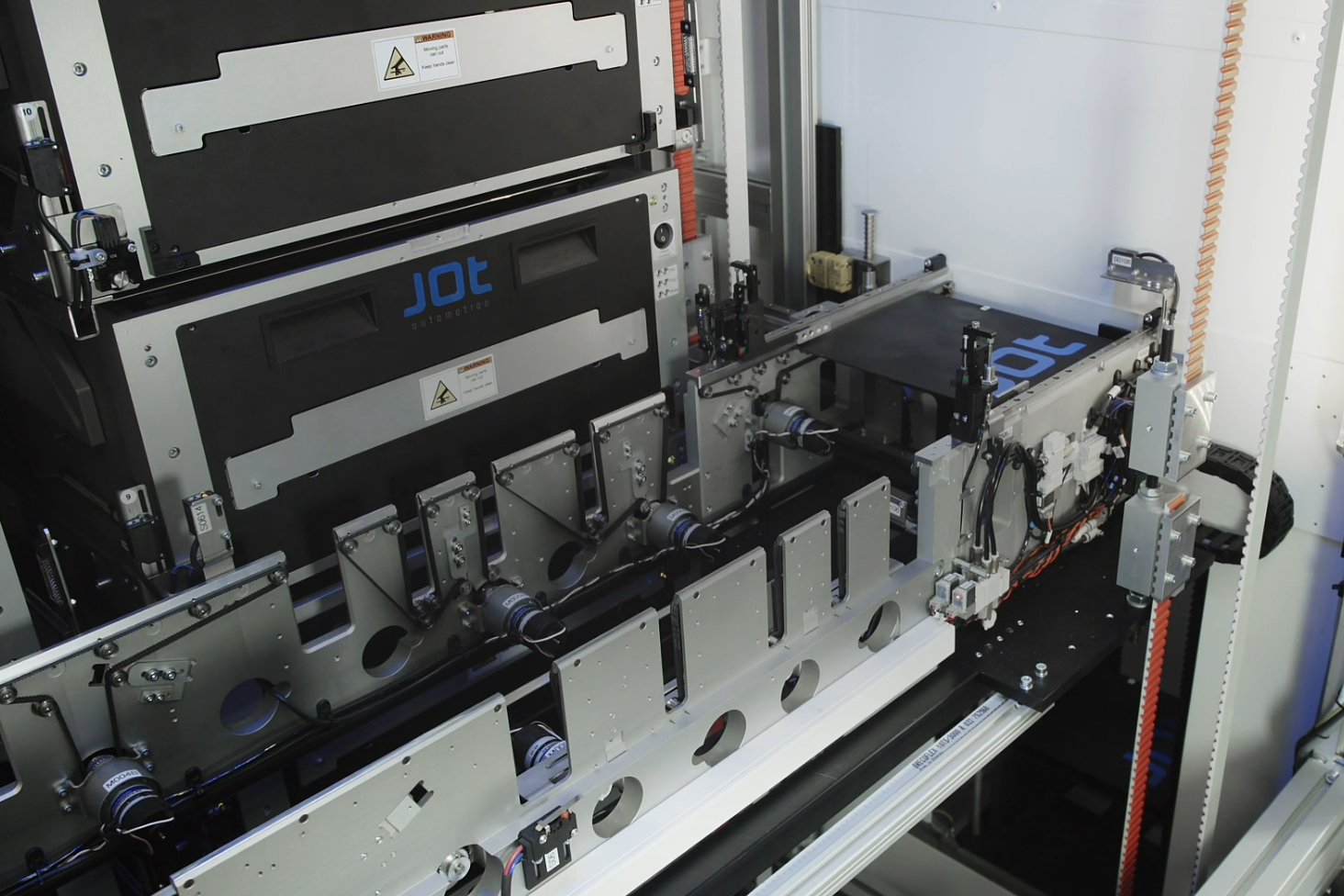

jot-m12-header-3

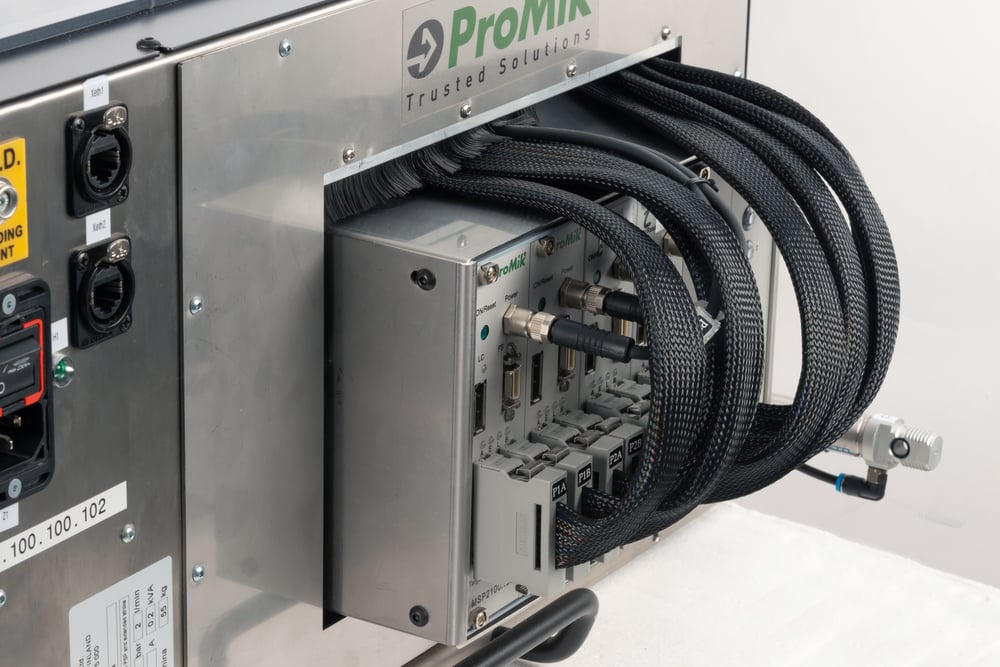

SSP_29929
jot-automation_products_m5-highlights_1

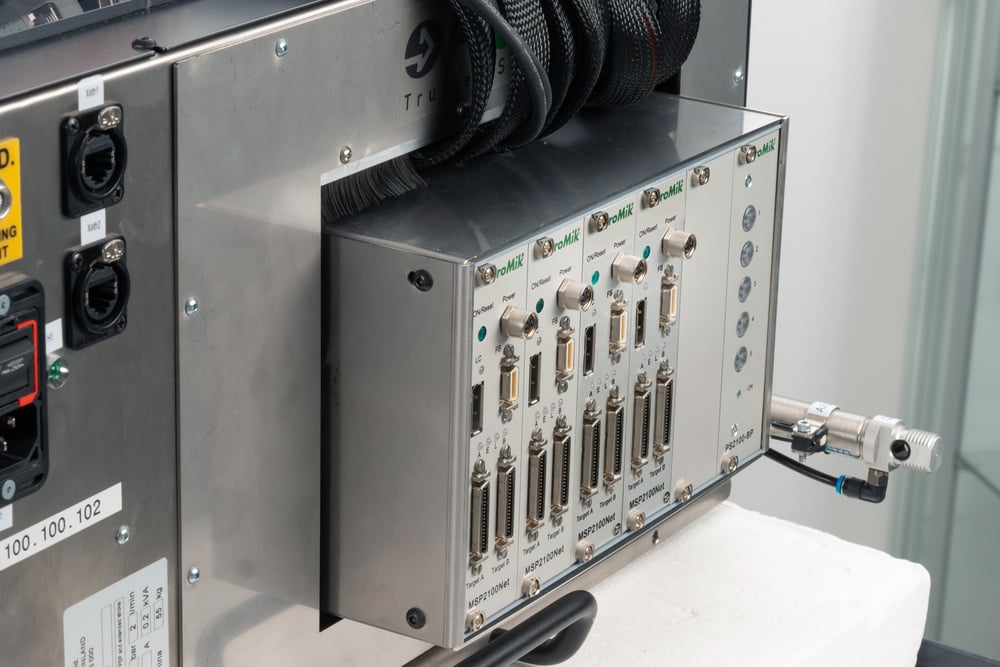

SSP_29932

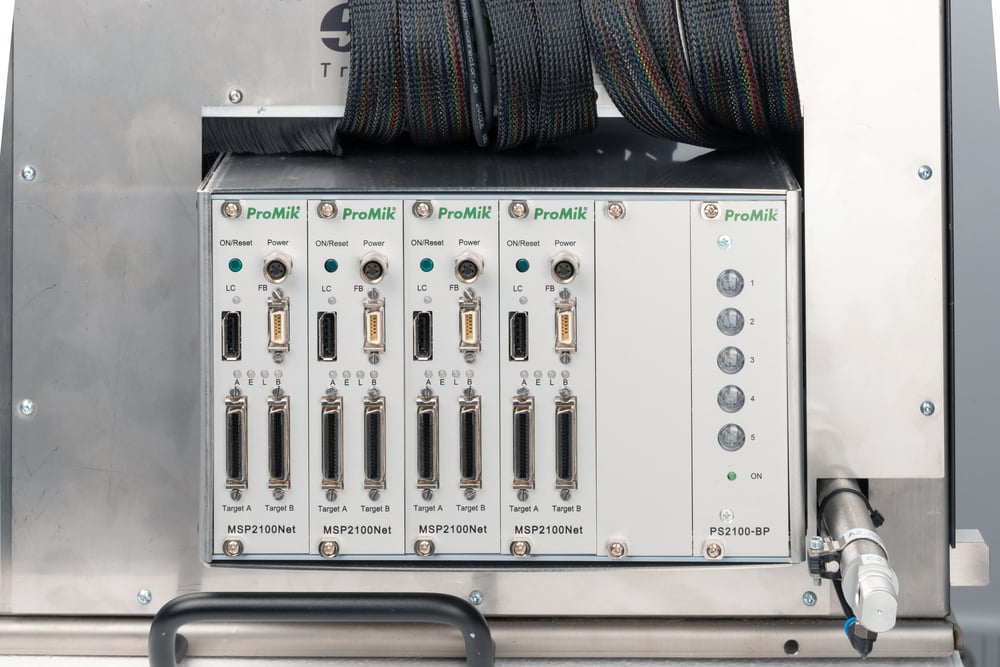

SSP_29936

Unlock a new level of PCB testing & programming

By combining the customizable flexibility of JOT's M Test Box with the high-speed, parallel programming capabilities of ProMik's MSP21X0Net, manufacturers can unlock a new level of efficiency and performance tailored to diverse production requirements. This integrated system streamlines the testing and programming process, reduces setup times, and enhances overall production efficiency, making it an ideal choice for high-mix and high-volume PCB manufacturing environments. Together, the integrated solution address the growing demand for smarter, more connected PCB testing solutions.

The JOT M Test Box and ProMik MSP2100Net integration is more than just a testing and programming solution—it’s a game-changer for manufacturers. By combining JOT’s customizable flexibility with ProMik’s high-speed programming capabilities, this system delivers unparalleled efficiency, scalability, and adaptability. Whether you’re tackling complex prototypes or high-volume production, this integrated solution ensures faster turnaround times, reduced downtime, and superior performance, making it the ultimate choice for modern PCB testing.

Integrated Test Box highlights
  • Modular and customizable design for diverse testing applications & instrumentation.
  • Minimal footprint suitable for any test environment.
  • Plug-and-play readiness, scalable from offline to inline test handling.
  • Compatibility as a standalone unit or integrated with any JOT M Test Handler.
  • High-speed, secure, and scalable flash programming (at device specific physical limits)
  • Multiple configurable I/0s supporting all standard series interfaces
  • Dedicated fieldbus interfaces like Ethernet, CAN FD & LIN for subsequent programming and testing
  • Combines Boundary Scan, Flash, and Functional Test in a single module
  • Built-in power supply for target applications – Ensures stable and efficient programming

Download product datasheet

M TEST BOX FEATURES:

  • M Test Boxes are compatible as standalone or inline with any M Test Handler
  • Boxes are fully independent for off-line testing
  • Up to 1800N contacting force with top to bottom or bottom to up press mechanics
  • Up to 340 x 340 mm DUT size
  • Up to 50 mm top side component height
  • More than 10 test box variants available
  • Ethernet communication interface
  • Easy-to-use web UI
  • Fully customizable by nature, the M Test Boxes can be tailored specifically to your needs

FUNCTIONAL TESTING

  • Electrical measurement
  • LED test
  • Button test

Programming

DOWNLOAD PRODUCT DATASHEET

Learn more about the JOT M Test Boxes and how you can improve your PCB testing with them. Click to download the datasheet for more detailed product specifications.

M - STANDS FOR MODULARITY

The core idea of the innovative M Test System is to provide a testing solution that is easily adaptable to a variety of production requirements. Product handling is an important part of the M-TestSystem and it’s specifically designed for system scalability. And because all application-specific features are housed inside each easily tailored M Test Box, the nature of the test process may be adapted dramatically – simply by changing the box.

Entirely usable on their own in a stand-alone configuration or integrated into one of our test handlers, like the M5 Test Handler or the M12 Test Handler, the M Test Box is the perfect test station for automated and semi-automated PCB(A) testing.
