Odd-Shape XL Assembly Cell


←  Products  /  Assembly /  Odd-Shape XL Assembly Cell

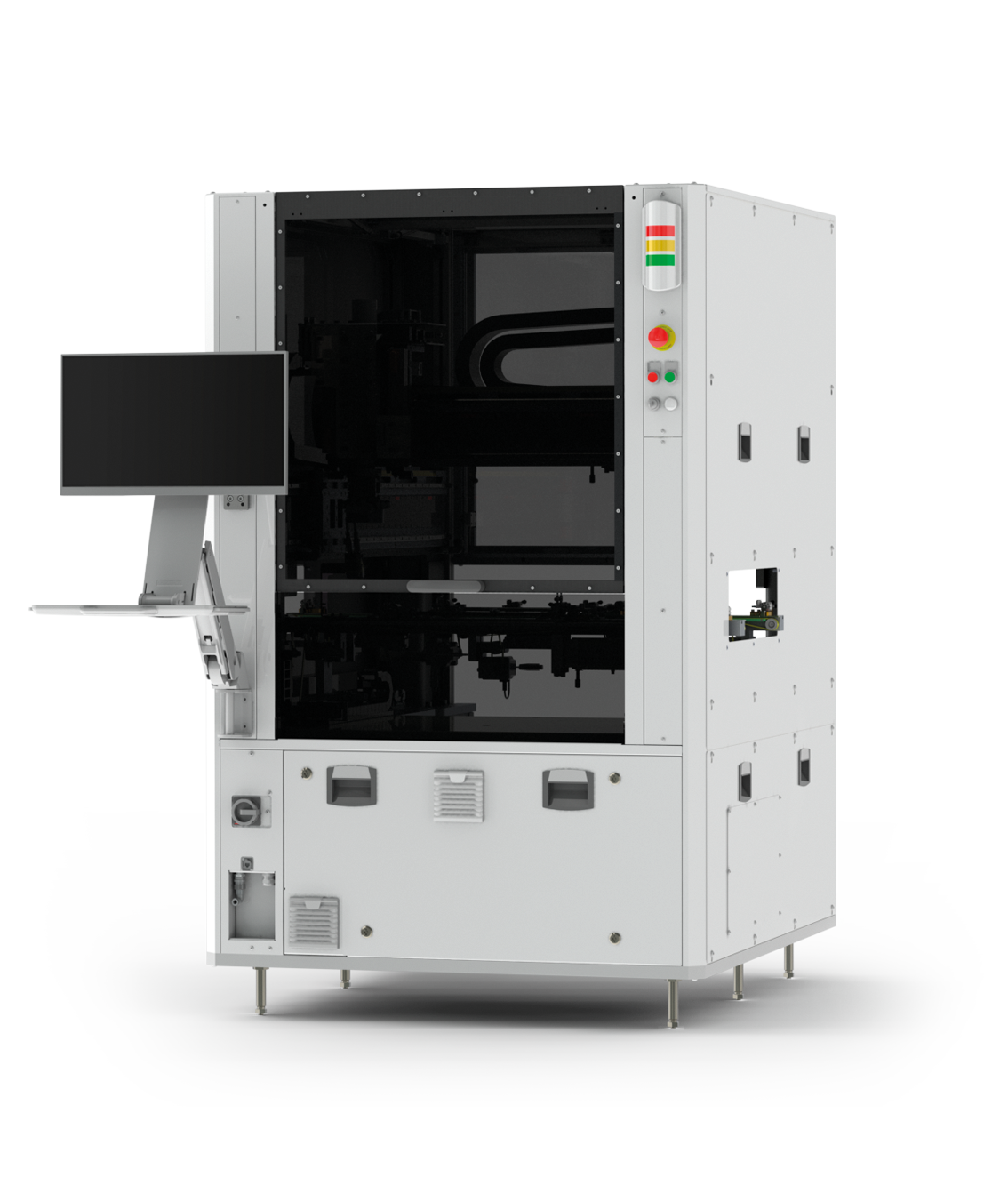

jot_oddshape_1134x1342px_01
odd-shape-highlight-4
odd-shape-highlight-1
odd-shape-highlight-3

Our most versatile, flexible and customizable assembly cell ever.

The bigger 620 Series Odd-Shape is compact in footprint, yet feeds in parallel up to 9 different components to provide high productivity while keeping up with superior accuracy and reliability in demanding production conditions. The changeable feeder table and up to 2 tray feeders allow different custom feeders to be easily changed on the fly.

The reusability of the platform and feeders is close to 90%, allowing the platform to grow and adapt with future business needs. The same cell is easily expandable to automate over 20 different processes and configurable to versatile applications like screw insertion, soldering, laser marking, labeling and packaging.

KEY PRODUCT FEATURES:

  • 620 Series
  • Automatic tool change system – up to 9 tools
  • Versatile tray feeder – up to 2 tray feeders
  • Well-equipped to handle all components regardless the shape
  • +100 different component types already assembled
  • The most cost efficient solution
  • Best-in-class accuracy and reliability in demanding production conditions
  • Product lifetime +25 years
  • Close to 90% reusability of platform and feeders
  • Minimized footprint 1.4 m² and yet feeding parallel up to 9 different components
  • Easily expandable to automate +20 different processes

STANDARD FEATURES:

  • Active and passive clinching
  • High precision mechanical tools
  • Gripper presence detection
  • Component presence sensing
  • Insertion tests
  • Easily configurable to versatile applications
  • Applicable with different types of component feeders and grippers
  • Automatic tool exchange system
  • Easy set up with graphical user interface
  • Hermes / SMEMA electrical interface
  • Modular design, easy to expand

OPTIONAL FEATURES:

  • Transport direction from right to left
  • Up to 15mm conveyor belt carrying edge
  • Different machine vision options for board and component inspection
  • Return conveyor
  • Changeable feeder table
  • Up to 2 tray feeders
  • Automatic conveyor width adjustment
  • Conveyor speed adjustment
  • Pallet conveyor
  • Bar code, QR or 2D reader

DOWNLOAD PRODUCT DATASHEET

Learn more about the JOT Odd-Shape XL Assembly Cell that makes odd-form component assembly easy and flexible. Click to download the datasheet for more detailed product specifications.
